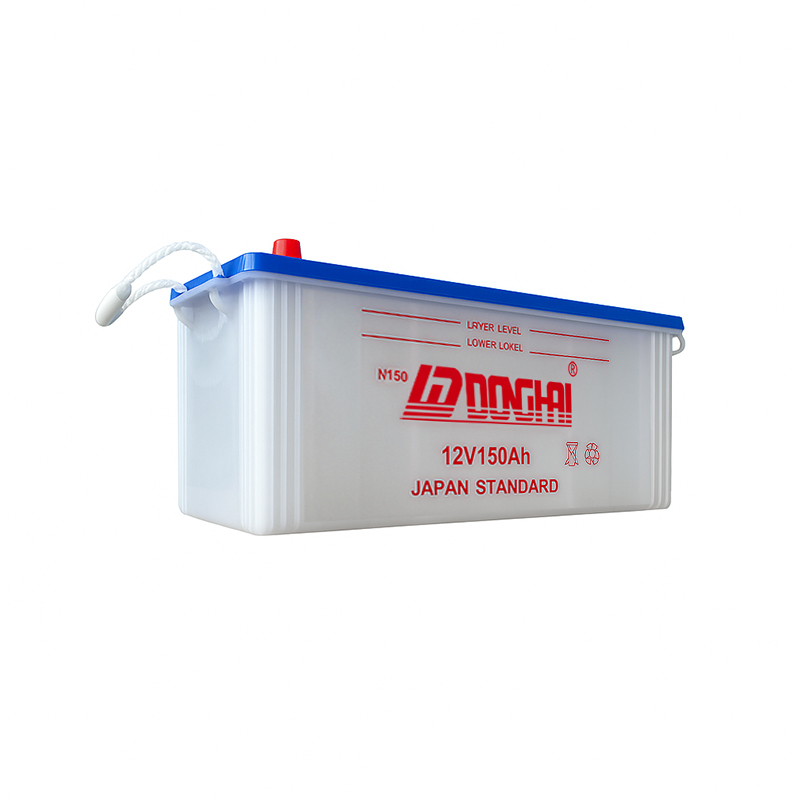

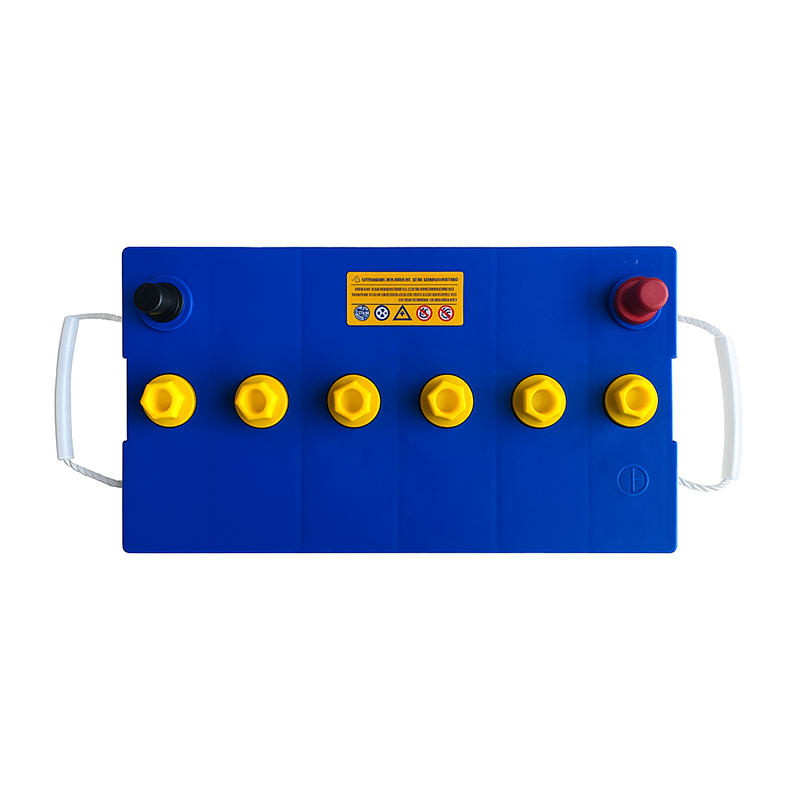

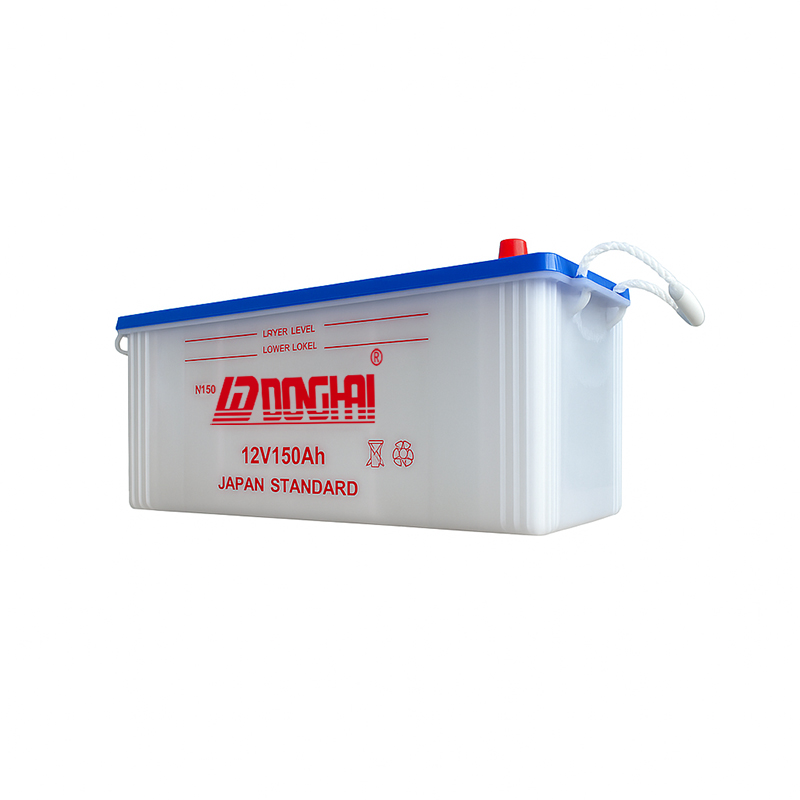

N150 JIS ordinary starting battery

Rated voltage: 12V
Capacity: 150Ah
Maximum dimensions: 508*222*213*235
Current reference weight: 24.8 kg

Parameter information

			Voltage V	Capacity			CCA (-18℃)	Maximum dimensions/mm				Now refer to the weight
Type	Replacing Type	China’Type		20hr Ah	5hr Ah	RC min		L	W	H	TH	Mass(dry)
				20hr Ah	5hr Ah	RC min		L	W	H	TH	Kg
		3QA120	6	120	-	223	700	236	168	194	231	10.3
		3QA150	6	150	-	290	800	276	168	204	240	12.5
		3QA195	6	195	-	395	900	396	167	211	245	17.6
		6QA32	12	32	-	47	250	198	128	165	188	6.5
26A19L(R)	12N24-3(4)		12	26	21	36	200	187	127	162	184	6.0
28A19L(R)	NT50-N24		12	26	21	36	200	187	127	162	187	6.0
32A19L(R)	NX60-N24		12	30	24	43	240	187	127	162	187	6.5
26B17L(R)			12	26	21	36	200	167	127	203	227	6.0
28B17L(R)			12	30	24	43	240	167	127	203	227	6.5
34B17L(R)			12	34	27	50	270	167	127	203	227	6.5
28B19L(R)	NS40S	6QA30	12	30	24	43	240	187	127	203	227	6.5
34B19L(R)	NS40ZA		12	34	27	50	270	187	127	203	227	6.5
38B19L(R)			12	35	28	52	280	187	127	203	227	6.8
	NS40		12	32	26	47	250	199	131	199	220	6.4
36B20L(R)	NS40Z	6QA35	12	35	28	52	280	199	131	199	220	7.0
38B20L(R)	NT60-S4		12	35	28	52	280	199	131	199	220	7.0
44B20L(R)			12	42	34	64	310	199	131	199	220	7.5
46B24L(R)	NS60	6QA45	12	45	36	70	350	238	130	200	223	8.3
50B24L(R)	NT80-S6		12	45	36	70	350	238	130	200	223	8.3
55B24L(R)	NX100-S6		12	45	36	70	350	238	130	200	223	8.3
32C24L(R)	N40	6QA40	12	40	32	61	300	238	130	200	223	7.7
50D20L(R)			12	50	40	79	400	199	170	202	220	9.7
55D23L(R)			12	60	48	98	500	230	170	207	225	10.8
65D23L(R)			12	65	52	108	600	230	170	207	225	11.7
70D23L(R)			12	65	52	108	600	230	170	207	225	11.7
75D23L(R)			12	65	52	108	600	230	170	207	225	11.7
48D26L(R)	N50	6QA50	12	50	40	79	400	262	170	204	227	9.8
55D26L(R)	N50Z	6QA60	12	60	48	98	500	262	170	204	227	10.8
65D26L(R)	NS70		12	65	52	108	600	262	170	204	227	11.7
75D26L(R)			12	65	52	108	600	262	170	204	227	11.7
80D26L(R)	NX110-5		12	69	55	116	600	262	170	204	227	12.4
65D31L(R)	N70	6QA70	12	70	56	118	530	310	173	202	224	12.5
75D31L(R)	N70Z	6QA75	12	75	60	128	550	310	173	202	224	12.7
95D31L(R)	NX120-7	6QA80	12	80	64	138	550	310	173	202	224	13.4
105D31L(R)			12	80	64	138	550	310	173	202	224	13.4
	30H	6QA90	12	90		158	600	360	173	213	236	15.3
	N100sq、US-6TN、US-6TL		12	100		179	650	265	259	207	231	18.5
95E41L(R)	N100	6QA100	12	100	80	179	650	409	175	209	232	16.3
105E41L(R)	N100Z	6QA105	12	105	84	190	750	409	175	209	232	17.1
115E41L(R)	NS120		12	110	88	201	750	409	175	209	232	17.9
130E41L(R)	NX200-10		12	115	92	212	750	409	175	209	232	18.8
115F51	N120	6QA120	12	120	96	223	700	506	180	213	237	20.3
150F51	NT200-12	6QA135	12	135	108	256	800	506	180	213	237	22.0
145F51	NS150		12	140	112	267	800	506	180	213	237	22.9
170F51	NX250-12		12	150	120	290	800	506	180	213	237	24.5
145G51	N150	6QA150	12	150	120	290	800	508	222	213	235	24.8
180G51	NT250-15		12	160	128	313	800	508	222	213	235	26.5
		6QA165	12	165		324	850	508	222	213	235	27.3
165G51	NS200		12	170	136	336	850	508	222	213	235	27.3
195G51	NX300-15		12	175	140	348	850	508	222	213	235	28.2
		6QA180	12	180		360	900	508	222	213	235	29.0
		6QA195	12	195		395	900	508	222	213	235	30.6
190H52	N200	6QA200	12	200	160	407	1000	517	274	215	239	32.3
210H52		6QA210	12	210	168	432	1000	517	274	215	239	34.0
245H52	NX400-20	6QA220	12	220	176	456	1000	517	274	215	239	35.7
